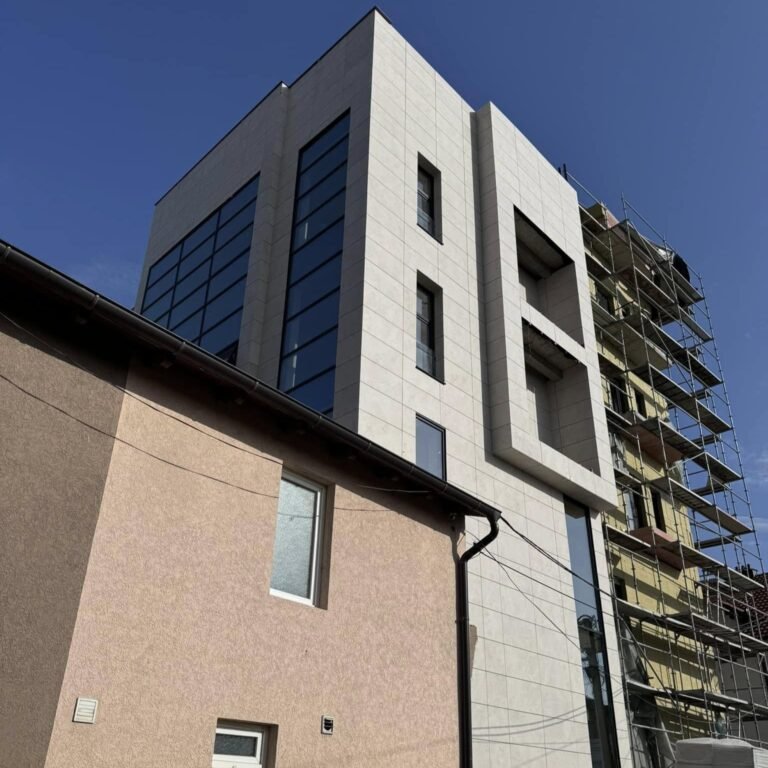

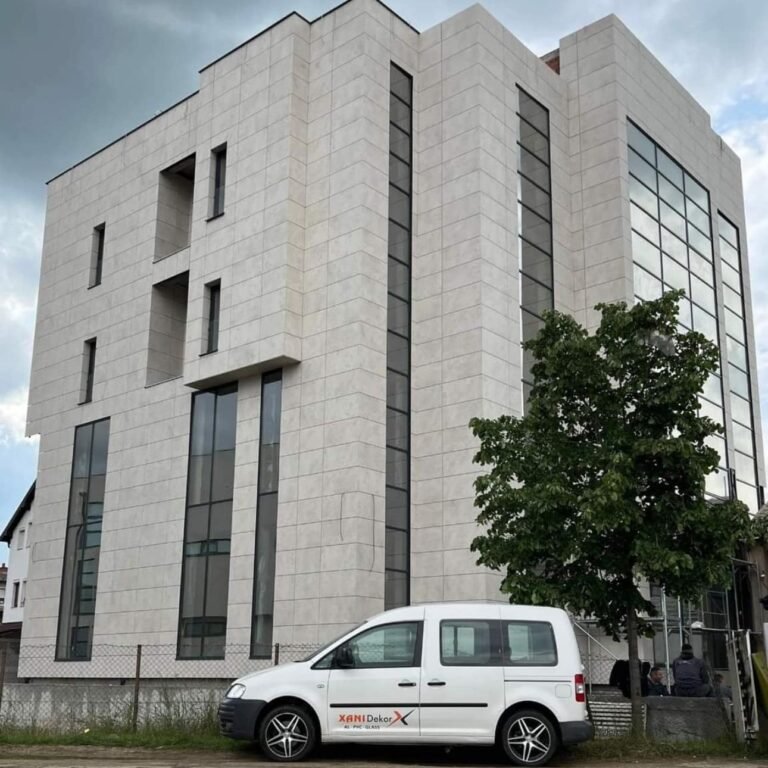

Ventilated facade with ceramic tiles

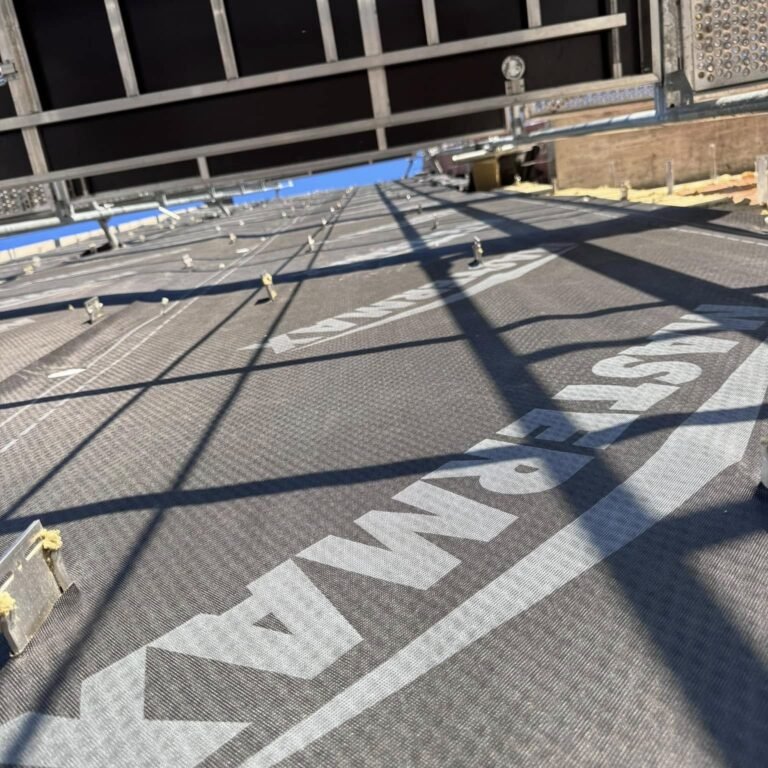

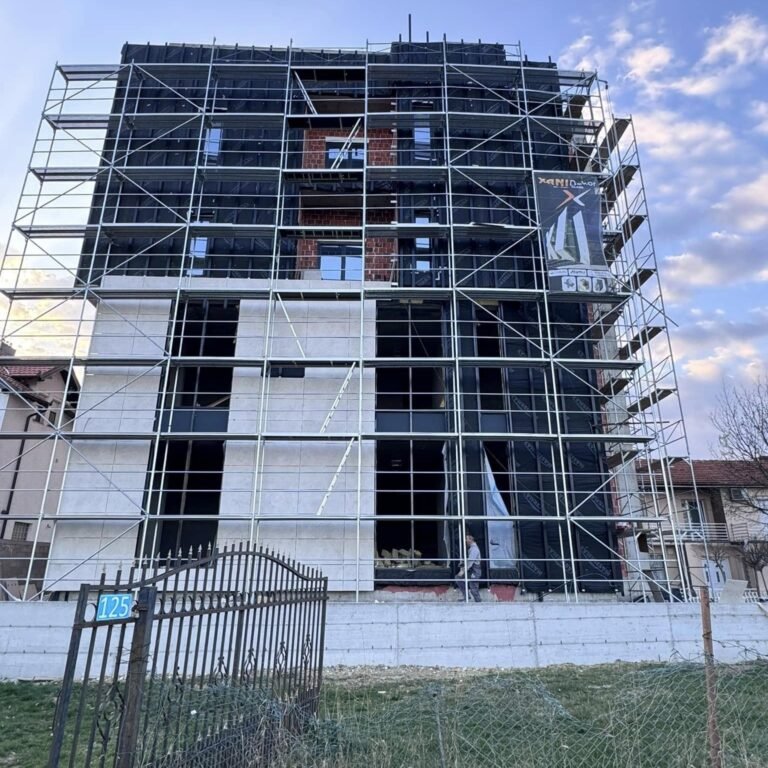

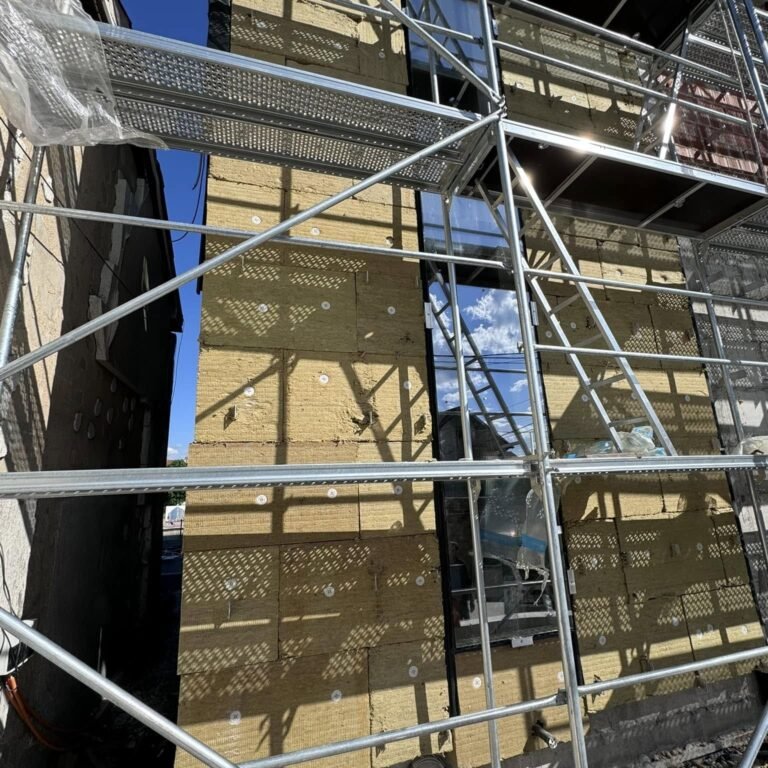

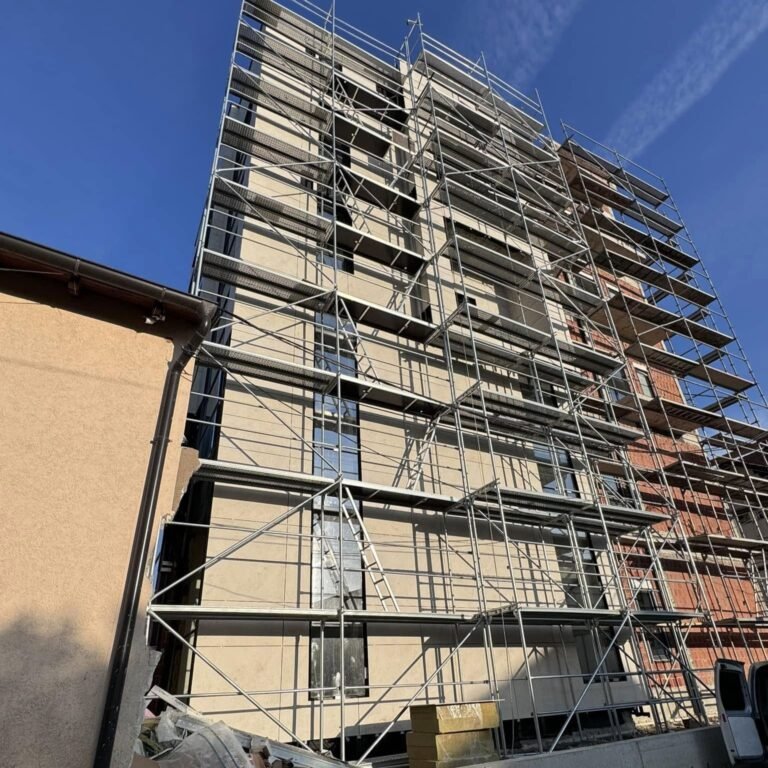

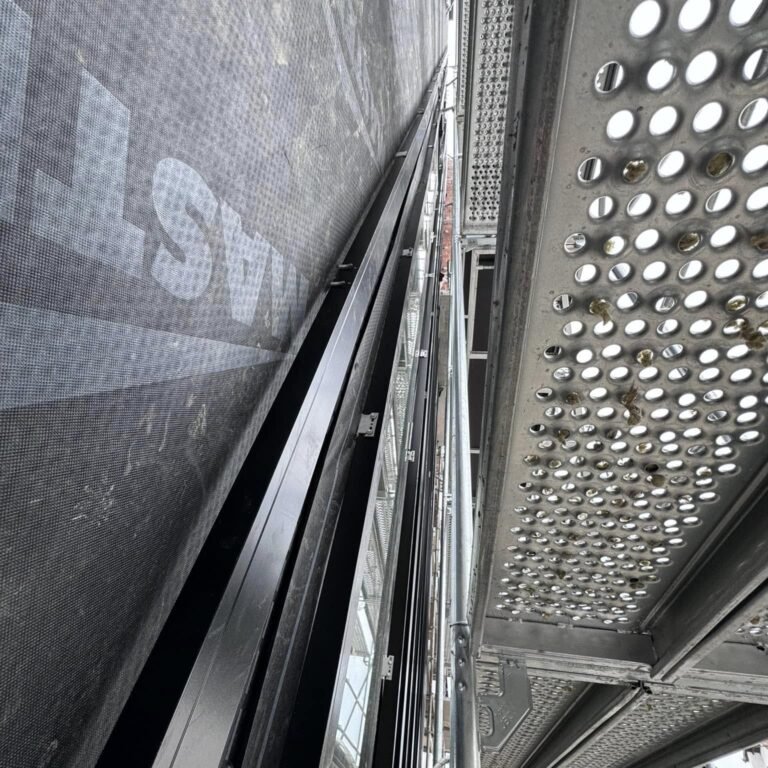

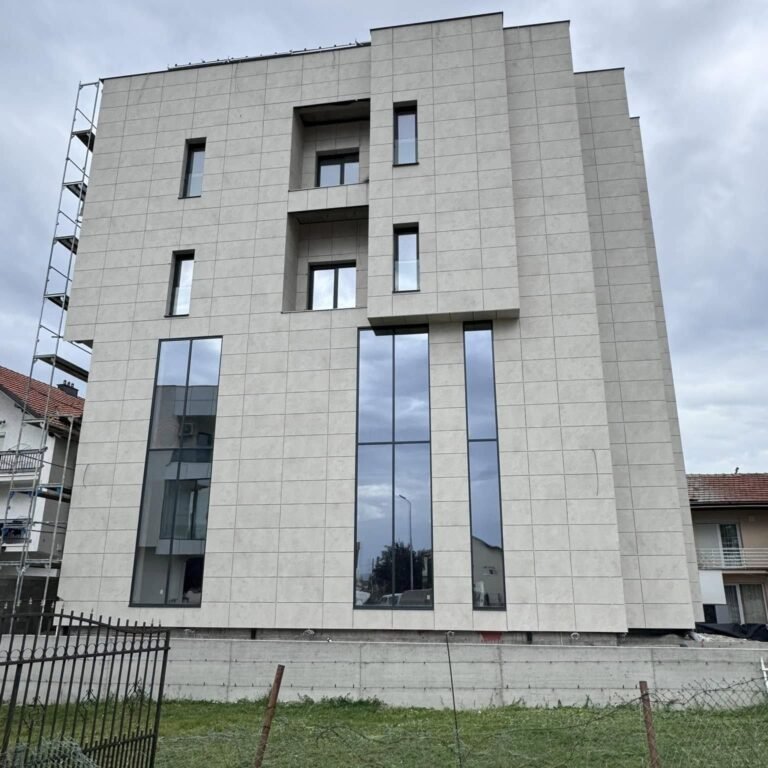

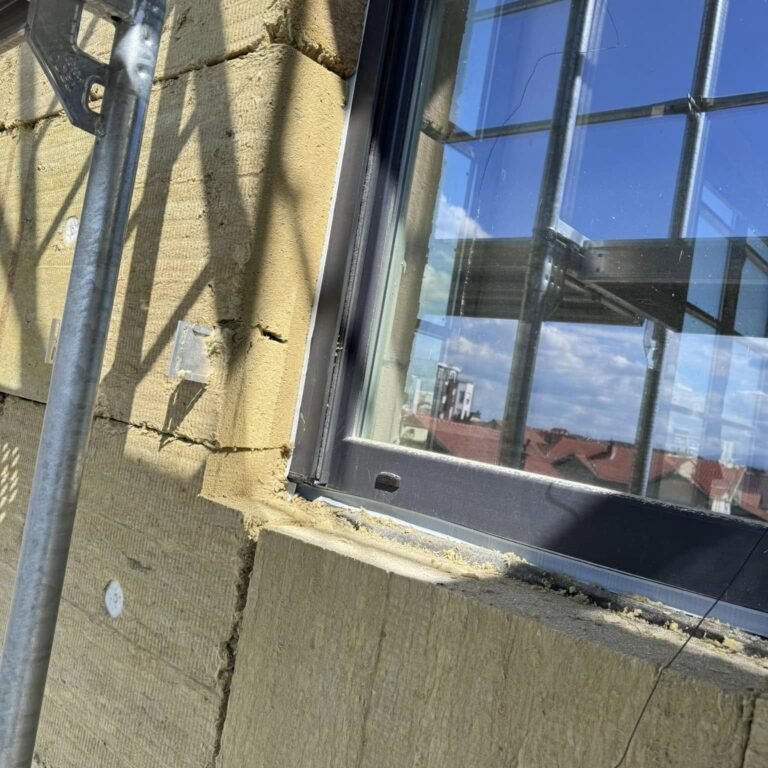

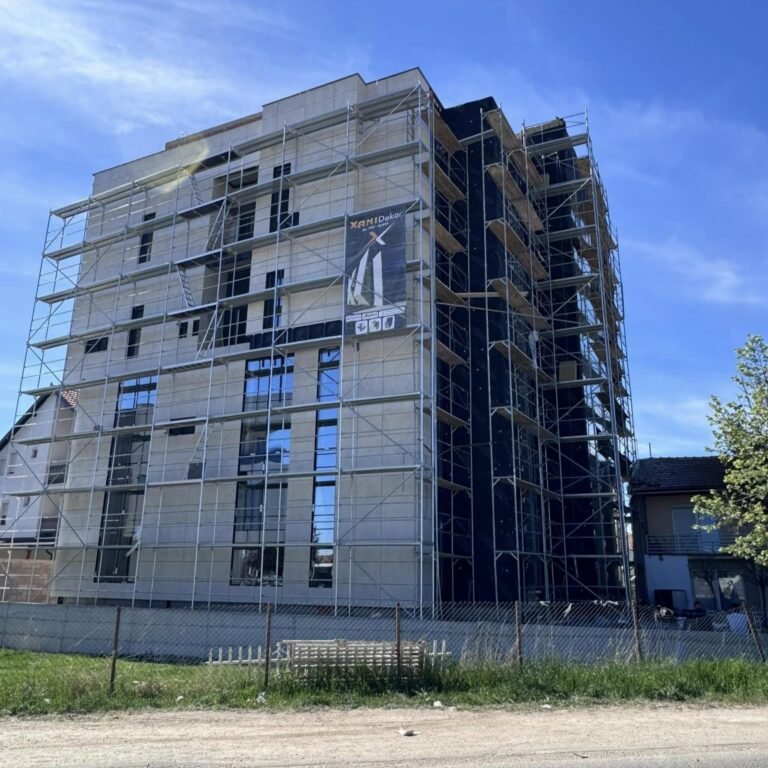

This project delivers a complete exterior solution combining a ventilated facade with ceramic cladding, a semi-structural aluminium-and-glass system, and high-performance windows and doors. The ventilated facade build-up includes 150 mm rock wool insulation (80 kg/m³), a diffusion membrane, and an aluminium T/L substructure, finished with ceramic tiles 60×120 cm (10 mm). For the glazed areas, we installed Alumil M6 profiles and insulated glazing using Solar / Float / Low-E glass combinations. The openings were completed with GEALAN S9000 windows and doors, supported by Aluprof roller shutters and additional rolled aluminium sheet elements where required.
