Suitable for triple functional glazing with a maximum thickness of 52 mm (STV® 54 mm).

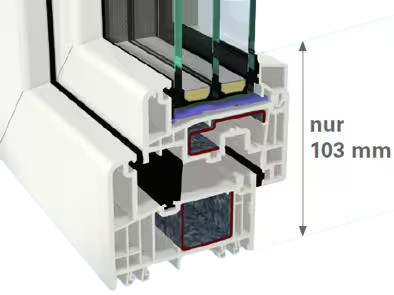

Very good heat and sound insulation thanks to the six-chamber design and large installation depth for the frame and sash.
Intelligent sealing concept with up to three end-to-end sealing levels.
Optimised for the use of STV® for dry bonding the pane and sash upstand.
Narrow visible width and 15° incline as a design feature.
Certified by the "Passive House Institute" as a suitable element for nearly zero-energy building construction.
GEALAN S 9000 is a modern PVC system for windows, doors and lift and slide elements, designed for new builds and renovations. It delivers strong thermal performance, very good sound insulation, and high stability, with a clean design based on the 15 degree bevel detail. It is also certified by the Passive House Institute for nearly zero energy construction.
Yes. The system is optimised for triple functional glazing with glass thickness up to 52 mm, or up to 54 mm when using STV bonding technology. This makes it a strong choice for energy efficient homes and buildings.
S 9000 uses an intelligent sealing concept with up to three continuous sealing levels. Together with the six chamber design and the large installation depth of the frame and sash, this improves airtightness and supports high heat and sound insulation.
GEALAN LUMAXX is a slim design option within the S 9000 platform. The frame geometry is optimised to reduce visible width and increase daylight, while keeping stability and security. With reinforced steel, elements can reach up to 2.30 m in white and 2.20 m in colour, and up to 2.50 m in white and 2.40 m in colour when combined with STV bonding technology.
S 9000 offers extensive colour choices through GEALAN acrylcolor and decorative foils. Acrylcolor provides a scratch resistant, weather resistant and easy care acrylic surface, while decorative foils offer a wide range of colours, textures and wood style finishes. Many tones can also be delivered as project specific options on request.
Built for performance: aluminium, PVC, glass, and ventilated facades.
